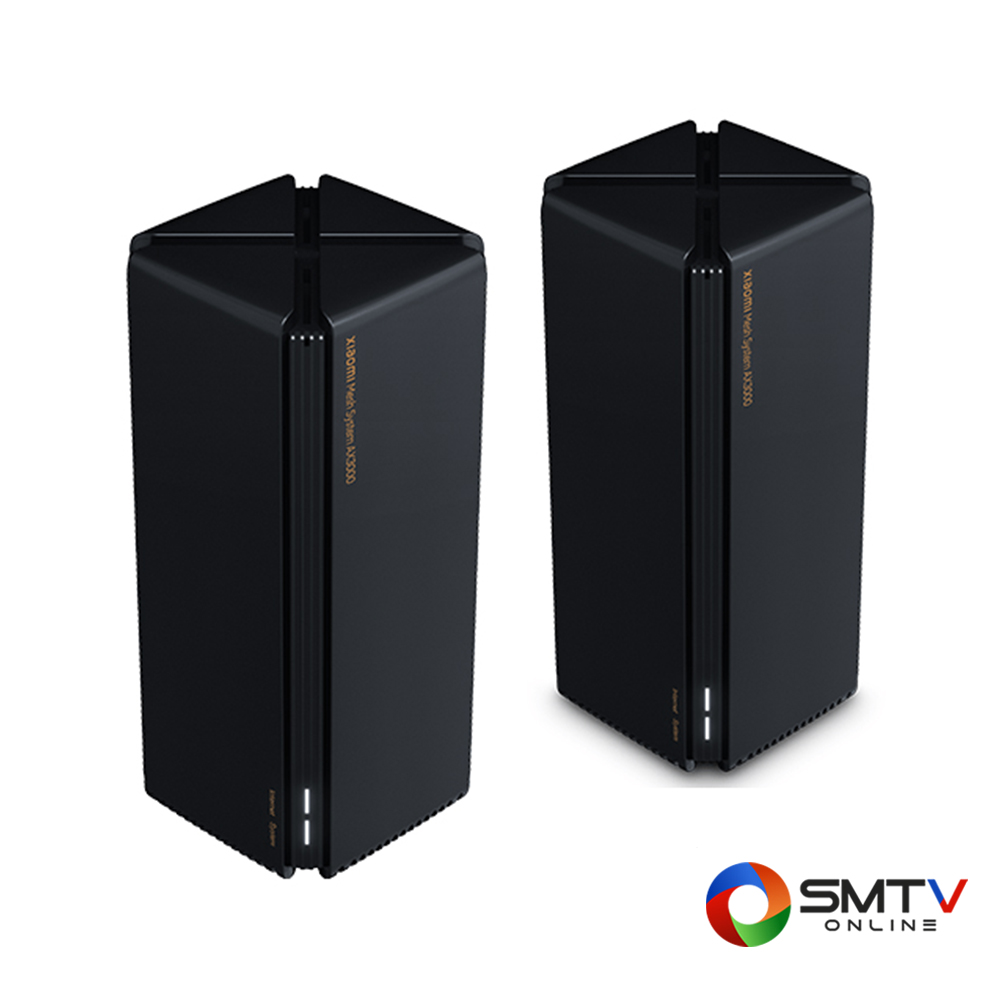

XIAOMI MESH SYSTEM AX3000(2-PACK)

XIAOMI MESH SYSTEM AX3000(2-PACK)

•  L×W×H (per unit): 97mm × 97mm × 222mm
•  Product color: Black
• Hardware configuration:
•  Processor: Qualcomm® IPQ5000 Dual-core A53 1.0GHz CPU
•  Network processing unit: Single core 1.0GHz NPU
•  Memory: 256MB
•  2.4G Wi-Fi: 2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 574Mbps)
•  5GHz Wi-Fi: 2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps)
•  Antennas: High gain antennas
•  Heat dissipation: Natural heat dissipation
•  LED indicator light: 2 lights, System indicator × 1, Internet indicator × 1
•  System reset button: ×1
•  Mesh networking button: ×1
•  Power input port: ×1
•  Protocol standards: IEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab
• Total ports
•  1×10/100/1000Mbps self-adaptive WAN port (Auto MDI/MDIX)
•  3×10/100/1000Mbps self-adaptive LAN ports (Auto MDI/MDIX)
• Wireless specifications:
•  Dual-band: 2.4GHz, 5GHz
• Modulation
•  11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)
• 11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),64QAM(48/54Mbps)
•  11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM. Data rate：MCS0-MCS15
• 11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.
•  11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM. Data rates: MCS0-MCS11 (supports 2 streams).
• Software specifications:
•  Operating system: MiWiFi ROM, a smart router operating system based on OpenWRT
•  WiFi Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, Wireless access control (black and white list), SSID hidden
•  Management applications: Supports Web, Android, iOS
• Working Environment:
•  Working environment Temperature: 0-40℃
•  Operating humidity: 10%-90%RH (non-condensing)
•  Storage temperature: -40-70℃
•  Storage humidity: 5%-90%RH (non-condensing)
• Package contents:
•  Xiaomi Mesh System AX3000
•  Instruction Manual
•  Power cord
•  Network cable
